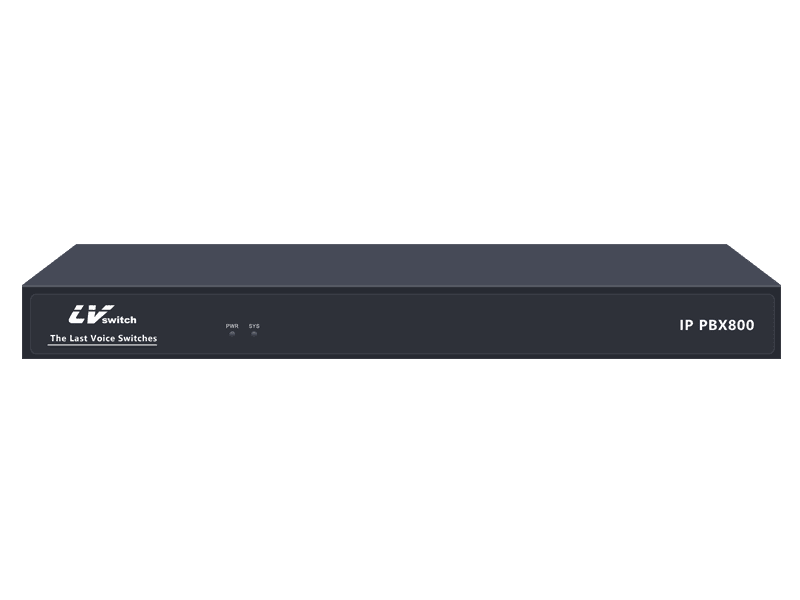

Lvswitch IP PBX800

Küçük ve orta ölçekli işletmeler için IP Hybrid Santral

Lvswitch IP PBX800 Genel Özellikleri

• 4 Analog dış 12 Analog iç hat
• Maksimum 300 ip abone
• Maksimum 100 sip trunk
• 4 adet gigabit eternet portu
• IVR robot operatör
• Tüm iç ve dış hatlarda anlık otomatik ses kaydı
• Çağrı kuyruk yapısı
• Tüm hatlarda arayan numara gösterme CID
• 30 adet ip abone lisansı
• Entegre güvenlik duvarı Fire wall

Teknik Özellikleri

• Main processor: high-performance ARM CPU
• Memory: 4Gb
• Flash: 4Gb

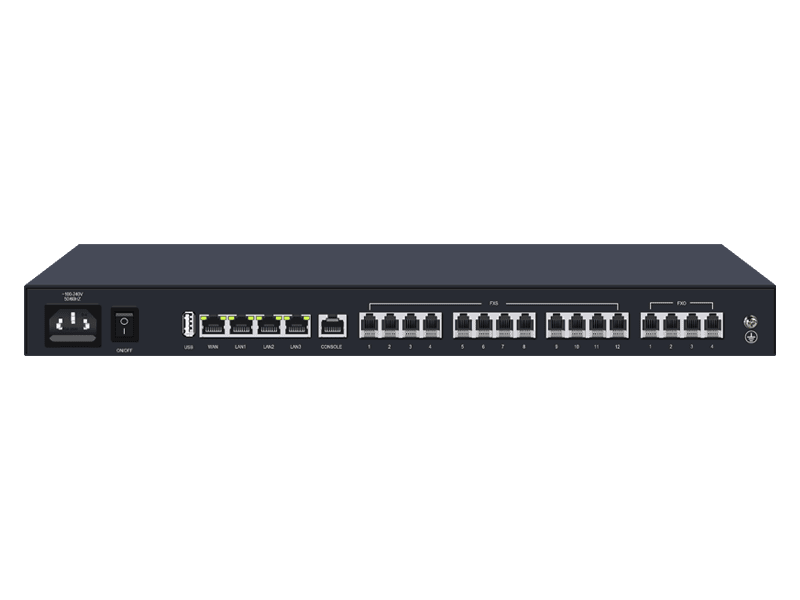

• Network interface: 1 WAN, 3 LAN, RJ45 interface, 10/100/1000M Ethernet adaptive
• USB interface: 1 USB2.0, support FullSpeed
• FXS interface: 12, RJ11 interface
• FXO interface: 4, RJ11 interface
• Weight and size: Net weight: ≤2KG Form: 1U；Dimensions (W×D×H): 430x180x44mm
• Power supply and power: AC input rated voltage range 100V a.c.～240V a.c.; 50/60Hz；Maximum power 25W
• Environmental requirements: working environment temperature 0℃～40℃, environment relative humidity 5%～90%No
• Eperformance degradation within 3000m above sea level, atmospheric pressure 86KPa~106KPa Dustproof The
• Concentration of particles in the air is less than 180 mg/m
• Uplink IP access: support static IP, DHCP, PPPoE, WAN sub-interface
• Uplink interface mode: support router mode, bridge mode machine
• IP services: DDNS, static routing, NAT, port mapping, UPnP, analog domain name, ALG, DNS, NTP, DHCP services
• Traffic management: QOS strategy, broadband strategy
• Hardware QOS: Hardware chip realizes VoIP QOS
• Extension type: analog extension: analog phone SIP extension: IP phone, video phone, soft phone
• Relay type: analog relay, SIP/IMS relay
• Voice codec: G.711U, G.711A, G.723, G.729
• Video codec: H.263, H.264 (transparent mode)
• DTMF: Support RFC2833, SIP info and inband
• Fax: T.30, T.38
• Business statistics: call log, traffic statistics
• Call processing: outbound routing, inbound routing, number change, dialing rules, calling number identification, called number identification
• Voice service: local number query, calling number identification display, calling number display restriction, unconditional call forwarding, call forwarding when the user is busy, call forwarding when there is no answer, blind forwarding, inquiry forwarding, call waiting, call save , Call Park, Three-way Call, Hook Hook Authority, Speed ​​Dialing, Call Restriction, Extension Group Restriction, Blacklist, Call Time Limit, Do Not Disturb, Phone Logout, Same Group Pickup, Immediate Hotline, Delayed Hotline, Simultaneous Ring Service, ringing service, alarm service, VIP extension number, recording and playback service, one phone with multiple numbers, voice mailbox, color ring back tone service, queue, enterprise switchboard, one number communication, billing service, recording service, video call.
• WAN port access control: WEB access, Ping prohibited, SSH protocol, SIP protocol
• IP address black and white list: IP address black and white list
• ARP anti-attack: IPSec, L2TP, PPTP
• DDOS protection: Ping of Death, Tear dop, TCP Flood, UDP flood, Traceroute, IP Spoofing, Port Scan, WINNUKE Attack
• VPN: IPSec, L2TP, PPTP
• VoIP security: SIP registered account verification, SIP registered IP address verification, total call duration limit, traffic monitoring.
• Local management: Web, Telnet, SSH
• Remote management: SNMP, TR069
• System testing: Ping, Traceroute, lfconfig, Route, HttpGet, DNS Query
• Log management: operation log, operation log, user log, security log.System maintenance: configuration backup and restoration, system upgrade, factory reset, time setting
